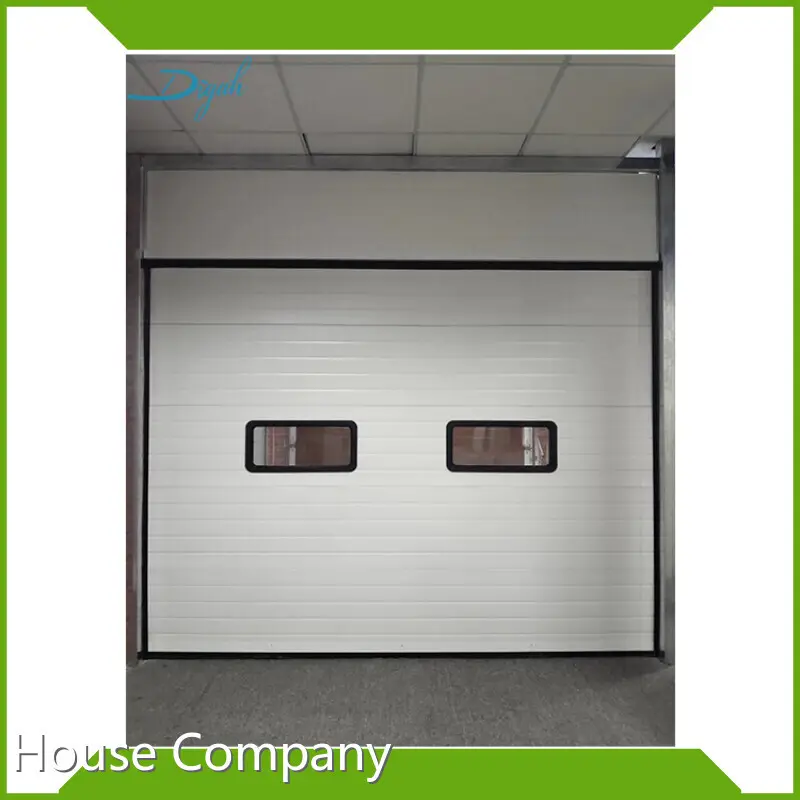

External Industrial Warehouse Dock Door Commercial Metal With Polyurethane Inside Sectional Doors
Panel Material | 0.45mm Steel/Aluminum With PU | Panel Color | White or Customized |
Max Width | 8000mm | View Window | Optional |
Max Height | 6000mm | Pedestrian Door
| Optional, Depends On Your Site |
Operation | Manual / Automatic | Motor | 380/220V |
Spare Parts | Track & All Necessary Hardware | Installation Position | Optional, Depends On Your Site |
| |
0.45mm Galvanized Steel/Aluminum & PU Inside | |
Max Size: 8000mm Wide*6000mm High Door Panel Height:500mm/550mm Thickness: 40/50/60/80mm Polyurethane Density≥42kg/m3 (insulation layer inside) Stock Color: White Or color customized
| Motor Speed: 1400rpm; Output Speed: 32 or 24rpm Power: 300 or 400W; Output Torque: 30/50/75N.m Thermal Protection Temperature: 120℃ Working Temperature: -20℃ to +50℃ Single-phase or Three-phase Supply |
| |
| |
With High Quality Torsion Spring, Roller, Hinge, Tower Wheel, Buffer, Torsion Spring Break Protector, etc. All necessary hardaware is included. | Visual Window & Pedestrian Door are available; Handle is convince for operate by manual. Man/Pedestrain Door customization is available. |
1. Legislation | 10. Spring | 19. Top Door Panel | 28. Wire Rope |
2. Vertical Rail Fixed Angle Plate | 11. Spring Anti-Fracture Device | 20. Daylighting Window (Optional) | 29. Wire Rope Anti-Fracture Device |
3. Horizontal Rail | 12. Tight Spring Seat Sbr | 21, The Middle Door Board | 30. Bottom Sealing |
4. Cross Rail Fixed Angle Plate | 13. Tight Spring Seat Ws | 22. Hinge | 31. Ventilation Window (Optional) |
5. Side Sealing Strip | 14. Industrial Door Opener | 23. Bottom Door Panel | 32. Central Edge Banding |
6. Door Shaft | 15. Door Opener Control Box | 24, Big Handle | 33. Top Edge Sealing |
7. Coupling | 16. Buffer | 25. Bottom Sealing Groove | 34. Top Sealing Strip |
8. Seat | 17. Steel Pulley | 26. Bottom Sealing Strip And Safety Bottom Edge | 35. Top Sealing Slot |
9. Drum | 18. Pulley Fixing Seat | 27, Bottom Pulley | 36. Remote Control Receiver (Optional) |
Industrial & Roll-Up Door Manufacturer Experience
In the past decades of years, we have accumulated rich experience in production and installation. And in the meantime, we have also constantly collected various problems and questions, then reported to our rolling door production line to find the solutions and keep on always seeking for improvements. Thus, for the demand of rolling shutter doors in overseas markets, we are have enough confidence in providing customers with right and good products.
Vietnam-FHS Project In 2013
Case:FHS Steel Factory project
Mainly products:Industrial Door & Stainless Steel Roll-Up Door Quantity:720 sets
Typical door case: Industrial Sliding Door- W20*H10 M.
China-Canton Tower In 2015
Case:Canton Tower
Mainly products:Anti-Theft Aluminium Roll-Up DoorQuantity:500sets
Typical feature:Anti-burgalar with auto-alarm and auto-lock system.
Myanmar-Juction City In 2016
Case:Juction City
Mainly products:Polycarbonate Roll-Up Door & Folding Door for shops Quantity:600sets
Typical feature:24 hours display
China-GZ Shouth Station In 2010
Case:Railway Station
Mainly products:Anti-Theft Aluminium Roll-Up Door for shopsQuantity:300sets
Typical feature:Anti-burgalar with auto-alarm and auto-lock system.
Laos-Itecc Mall Project In 2015
Case:Itecc Mall
Mainly products:Aluminium Roll-Up DoorQuantity:400sets
Typical feature:Anti-theft and economical for commercial
Global-Car Spray Paint Booth
Case: Global-Car Spray Paint Booth
Mainly products:Various types of Roll-Up DoorQuantity:over 1000sets
Remark:Still supplying from 2010 up till now
Ways of packages and shipments:
The ways of packing could be poly bubble cushion wrap or wooden case of metal frame and plywood.Since wooden cartoon is strong enough to protect the goods well, so it is suggested to choose wooden case as package if shipping by LCL, and it is also convenient for loading and unloading with forklift since the door is big and heavy.
If time allows, shipping by sea or railway is a good and economical choice. However, by air is also workable if the door is not too wide, please kindly contact customer service if you need it by plane.RAILWAY Express can also provide you with fast and reasonable price service.
For projects, that will be a good choice to order a full container and its package way would be only with poly bubble cushion wrap to save more, or collect different goods from different factories for different products into one container then send to the destination port.
If you have no idea, you are always highly welcomed to contact our customer service!
We're the manufacturer with decades of experience in producing doors and windows, located in Guangzhou, China.
As a local doors and windows supplier, we had good opportunity to participate in the construction and building of our city, such as Airport of Guangzhou and Beijing, GuangZhou South Station, Canton Tower and Aeon Super Mall etc. And also help to give solutions to customer's own house project.
We uphold the development concepts of professional, innovative, sincere, and efficient, focusing on product characters of art, aesthetics, safety and durability, to concentrate on creating high-quality fashion life for you and sincerely provide you with a satisfactory service.
Whatever your security shutter requirements, our team will guide you to the best solution.
Customer Visits&Exhibitions
Exhibitions overseas and Customers Visits in Factory:
A number of customers would come to visit our factory every year and we would also join worldwide exhibitions to meet our clients or communicate and share with other good manufacturers about the news including trends and technologies for doors and windows, which can help us to improve our products and acknowledge more about the customer demands in market.
1. Terms of payment?
Payment ways of trade Assurance on Alibaba.com, PayPal, Western Union, T/T, L/C are acceptable.
2. How can we guarantee quality?
Strict quality control is conducted before shipment and photos or videos would be sent for goods inspection.
3. How about after-sales service?
After sales service would be always following up your order to offer you satisfied service.
4. How long for the production & delivery?
It takes about 15-25 days for custom-made order.
In generally, it needs around 30-40 days for shipping by sea to Non-Asian countries.It takes around 25 days for shipping by train to Euro country.
5. Customization Service?
Just provide us the doors or windows opening sizes, colors and opening ways you prefer, then we will give you free design drawing to make sure that will match with your projects or not.
