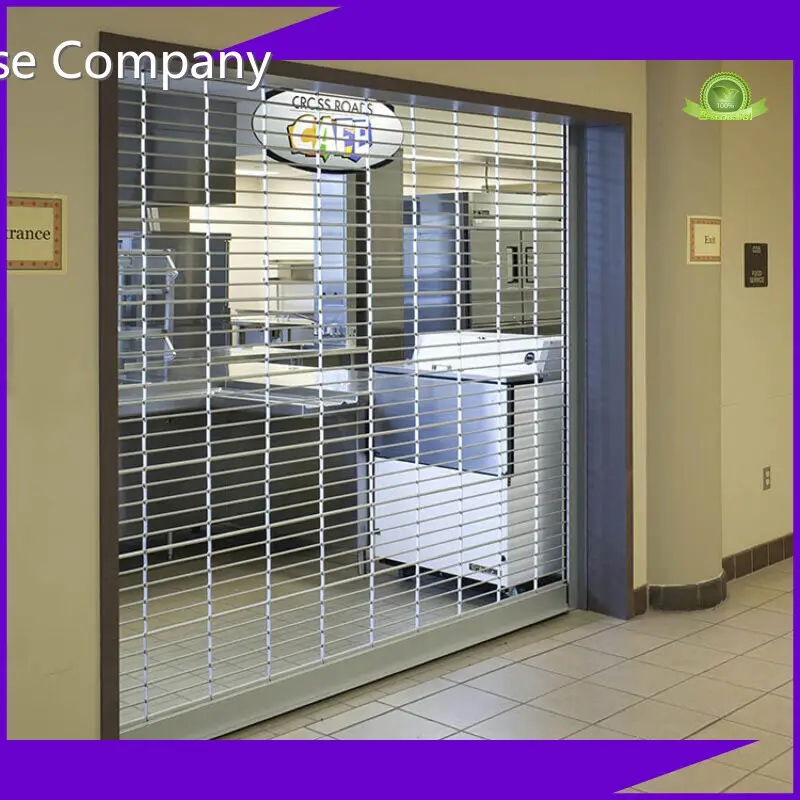

High Security Grill Roller Shutters Counter Aluminium Rolling Up Griller Shutters Custom Designs Auto Grill Doors
Max Width (mm)
| 7500 | Max Height （mm)
| 6000 |
Finish
| Powder Coating | Operation
| Crank/Chain hoist / Electric |
Perforated Slat Profile
| Single Layer Aluminium Alloy with Various Shapes of Holes | Lock | Motorized/ Ground Hook / Auto |
Grill Shutter Profile
| Aluminium/201 Stainless Steel/304 Stainlesss Steel | Bottom Lath
| "T" Shape / Flat Bottom |
Motor Type
| Sprocket/Tubular Motor | Hood
| Depends on height |
Slat Profile:aluminium | Griller Profile:201/304 SUS/Aluminum | Bottom Bar:aluminium/stainless steel |
Single Layer Perforated Aluminium | Griller Link Diameter:9/12/16mm | Two types for selection |
Picture model: single layer with rectangle holes. Alternatives: various types of holes Profile thickness:0.8/1.0 (mm). Stock color: gloss white.(Colors could be customized) | Picture Model: 201 Stainless Steel Grill Alternatives: customization acceptable Thickness: 0.8mm/1.0mm Stock Color: original(Colors could be customized) | Material: match with shutter Flat bottom lath: with rubber to improve waterproof & dust-proof performance.
"T"shape bottom lath:can be manual with hook. |
Motor | Remote Control | Manual Operation |
Automatic by electric&Manual by chain or by crank | Workable within 50 meters | Crank / Hook |
Different types of motor for choice including tubular motor, anti-explosion or fire-rated motor with high quality standard, simple maintenance and at least 10 years service life. | Will be convenient operate by Remote Control. Good induction performance could make you control well the door within 50 meters. | Generally, tubular motor is equipped with chain or crank for manual in case of power off. Sprocket motor is with chain.Or if only by manual without motor, crank or hook is available. |
Hood | Spare Parts | Lock(Optional and extra cost) |
Necessary for window types & Optional for door types | Necessary accessories for installation are included | Cylinder Lock: manual (Shutters width within 4m) |
Material of hood for window types is aluminium and its type is flat. Stock color: White &Beige. | When you place order, you would get full set rolling shutters as we promised. | Auto Smart Lock:automatic Ground Hook Lock:into ground and manual |
Various of slat profiles for doors and windows:
Different models of shutter slat profiles are available for different functions and designs of doors and windows.
The shutter slats would vary in thickness of profiles, performance of insulation, designs of perforated, applications for doors or windows, etc.
There are more designs for choice and it could be customized, please feel free to contact customer service for more info.
Roll-Up Door Manufacturer Experience
In the past decades of years, we have accumulated rich experience in production and installation. And in the meantime, we have also constantly collected various problems and questions, then reported to our rolling door production line to find the solutions and keep on always seeking for improvements. Thus, for the demand of rolling shutter doors in overseas markets, we are have enough confidence in providing customers with right and good products.
Vietnam-FHS Project In 2013
Case:FHS Steel Factory project
Mainly products:Industrial Door & Stainless Steel Roll-Up Door Quantity:720 sets
Typical door case: Industrial Sliding Door- W20*H10 M.
China-Canton Tower In 2015
Case:Canton Tower
Mainly products:Anti-Theft Aluminium Roll-Up DoorQuantity:500sets
Typical feature:Anti-burgalar with auto-alarm and auto-lock system.
Myanmar-Juction City In 2016
Case:Juction City
Mainly products:Polycarbonate Roll-Up Door & Folding Door for shops Quantity:600sets
Typical feature:24 hours display
China-GZ Shouth Station In 2010
Case:Railway Station
Mainly products:Anti-Theft Aluminium Roll-Up Door for shopsQuantity:300sets
Typical feature:Anti-burgalar with auto-alarm and auto-lock system.
Laos-Itecc Mall Project In 2015
Case:Itecc Mall
Mainly products:Aluminium Roll-Up DoorQuantity:400sets
Typical feature:Anti-theft and economical for commercial
Global-Car Spray Paint Booth
Case: Global-Car Spray Paint Booth
Mainly products:Various types of Roll-Up DoorQuantity:over 1000sets
Remark:Still supplying from 2010 up till now
Ways of packages and shipments:
The ways of packing could be poly bubble cushion wrap or wooden case of metal frame and plywood.Since wooden cartoon is strong enough to protect the goods well, so it is suggested to choose wooden case as package if shipping by LCL, and it is also convenient for loading and unloading with forklift since the door is big and heavy.
If time allows, shipping by sea or railway is a good and economical choice. However, by air is also workable if the door is not too wide, please kindly contact customer service if you need it by plane.RAILWAY Express can also provide you with fast and reasonable price service.
For projects, that will be a good choice to order a full container and its package way would be only with poly bubble cushion wrap to save more, or collect different goods from different factories for different products into one container then send to the destination port.
If you have no idea, you are always highly welcomed to contact our customer service!
We're the manufacturer with decades of experience in producing doors and windows, located in Guangzhou, China.
As a local doors and windows supplier, we had good opportunity to participate in the construction and building of our city, such as Airport of Guangzhou and Beijing, GuangZhou South Station, Canton Tower and Aeon Super Mall etc. And also help to give solutions to customer's own house project.
We uphold the development concepts of professional, innovative, sincere, and efficient, focusing on product characters of art, aesthetics, safety and durability, to concentrate on creating high-quality fashion life for you and sincerely provide you with a satisfactory service.
Whatever your security shutter requirements, our team will guide you to the best solution.
Customer Visits&Exhibitions
Exhibitions overseas and Customers Visits in Factory:
A number of customers would come to visit our factory every year and we would also join worldwide exhibitions to meet our clients or communicate and share with other good manufacturers about the news including trends and technologies for doors and windows, which can help us to improve our products and acknowledge more about the customer demands in market.
1. Terms of payment?
Payment ways of trade Assurance on Alibaba.com, PayPal, Western Union, T/T, L/C are acceptable.
2. How can we guarantee quality?
Strict quality control is conducted before shipment and photos or videos would be sent for goods inspection.
3. How about after-sales service?
After sales service would be always following up your order to offer you satisfied service.
4. How long for the production & delivery?
It takes about 15-25 days for custom-made order.
In generally, it needs around 30-40 days for shipping by sea to Non-Asian countries.It takes around 25 days for shipping by train to Euro country.
5. Customization Service?
Just provide us the doors or windows opening sizes, colors and opening ways you prefer, then we will give you free design drawing to make sure that will match with your projects or not.
Company Advantages
· Digah Company patio door lock works fine. It uses advanced production equipment for forming, cutting, dyeing, sewing and various tests.
· The product has one of a kind look. Each piece of the timber has unique and different wooden textures, with the addition of different timber cutting methods, its appearance is distinctive.
· This product has already occupied a relative market share for its huge economic effectiveness.
Company Features
· Over such years of solid development, Guangzhou House Empire Construction&Furnishing Co.,Ltd has been remaining a leading position in developing and manufacturing making beer.
· Digah Company has a complete quality management system to make making beer.
· Guangzhou House Empire Construction&Furnishing Co.,Ltd's mission is to provide innovative, economical, and timely solutions for our clients’ making beer needs. Inquire!
Application of the Product
Digah House Company's wood entry doors has a wide range of applications.
Digah House Company insists on providing customers with one-stop and complete solution from the customer's perspective.
