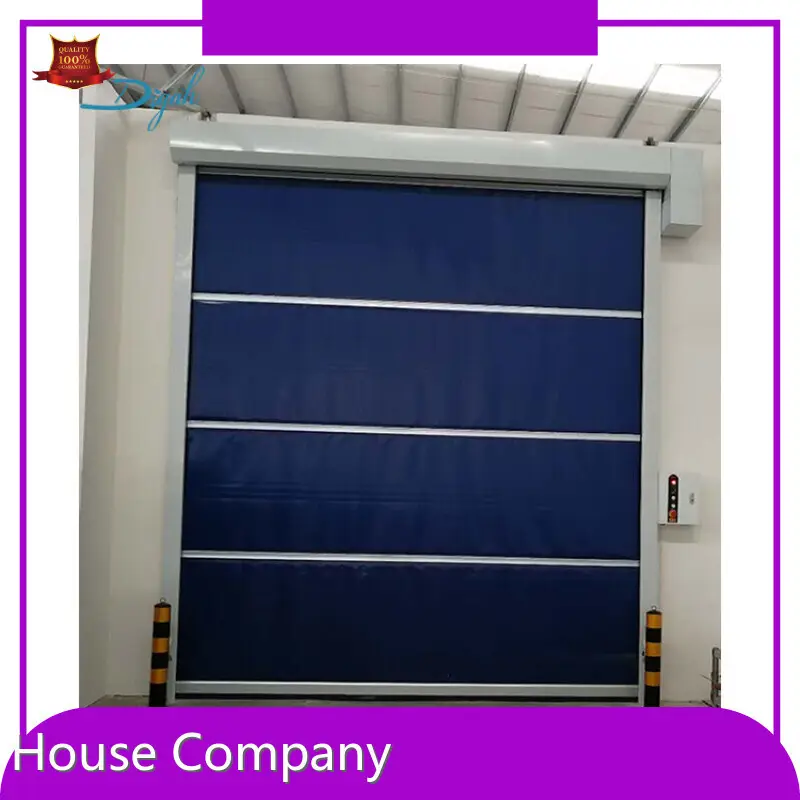

Industrial Auto Fast Roll-up Shutter Doors Customized PVC Rapid Roller Door
0.8-1mm Thickness (Made In France)
Blue, White, Yellow, Red, etc
8000mm (H) x 6100mm (W)
1000mm (H) x 2000mm (W)
120*50mm; 1.0mm THK
380/220V; 50Hz; 0.75-1.5KW
Track & All Necessary Hardware
-5ºC a +70ºC
-Button/Card/Fingerprint: From outside, those components allow to open the high speed door;
-Radar Sensor: It allows the door to open when movements within a maximum radius of 8m are detected;
-Remote Control: This way the doors can be opened from an approximate distance of 50m;
-Pull Rope: Using the rope that hangs from a considerable height so that it can be pulled for opening the door by a forklift operator;
-Magnetic Loop: In order to allow easier access, we could provide you a magnetic detector for opening the door with the simple passage of an object with a high metal content. This option comprises a spiral cable that, together with micro switches, enables different types of sensitivity adjustments so that it can function even in areas where there are large quantities of metal.
High-Density Industrial Coating Base Fabric
Thickness: Made in France (thickness 0.8mm);
Tensile Strength: (warp/weft) 5900/5100N/5cm;
Tear Strength: (warp/weft) 900/800N;
Working Temperature: -40°C to +80°C;
Fire Rating: German standard DIN7520;
Stock Color: Blue, Yellow, Red, White, Green, etc.
Visual Window: Available
Power: 0.75-1.5KW; 7500 rpm；
Speed By Roll Up: 0.6-2(m/s) Adjustable;
Speed By Roll Down: 0.5-1.5(m/s) Adjustable;
Drive Device: Dedicated servo motor；
Control System: Servo control；
The control box has high accuracy and is working with PLC and two, with high performance and high reliability.
Industrial & Roll-Up Door Manufacturer Experience
In the past decades of years, we have accumulated rich experience in production and installation. And in the meantime, we have also constantly collected various problems and questions, then reported to our rolling door production line to find the solutions and keep on always seeking for improvements. Thus, for the demand of rolling shutter doors in overseas markets, we are have enough confidence in providing customers with right and good products.
Vietnam-FHS Project In 2013
Case:FHS Steel Factory projectMainly products:Industrial Door & Stainless Steel Roll-Up Door
Typical door case: Industrial Sliding Door- W20*H10 M.
China-Canton Tower In 2015
Case:Canton TowerMainly products:Anti-Theft Aluminium Roll-Up Door
Typical feature:Anti-burgalar with auto-alarm and auto-lock system.
Myanmar-Juction City In 2016
Mainly products:Polycarbonate Roll-Up Door & Folding Door for shops Quantity:600sets
Typical feature:24 hours display
China-GZ Shouth Station In 2010
Mainly products:Anti-Theft Aluminium Roll-Up Door for shops
Typical feature:Anti-burgalar with auto-alarm and auto-lock system.
Laos-Itecc Mall Project In 2015
Mainly products:Aluminium Roll-Up Door
Typical feature:Anti-theft and economical for commercial
Global-Car Spray Paint Booth
Case: Global-Car Spray Paint Booth
Mainly products:Various types of Roll-Up Door
Remark:Still supplying from 2010 up till now
Ways of packages and shipments:
The ways of packing could be poly bubble cushion wrap or wooden case of metal frame and plywood.
Since wooden cartoon is strong enough to protect the goods well, so it is suggested to choose wooden case as package if shipping by LCL, and it is also convenient for loading and unloading with forklift since the door is big and heavy.
If time allows, shipping by sea or railway is a good and economical choice. However, by air is also workable if the door is not too wide, please kindly contact customer service if you need it by plane.RAILWAY Express can also provide you with fast and reasonable price service.
For projects, that will be a good choice to order a full container and its package way would be only with poly bubble cushion wrap to save more, or collect different goods from different factories for different products into one container then send to the destination port.
If you have no idea, you are always highly welcomed to contact our customer service!
We're the manufacturer with decades of experience in producing doors and windows, located in Guangzhou, China.
As a local doors and windows supplier, we had good opportunity to participate in the construction and building of our city, such as Airport of Guangzhou and Beijing, GuangZhou South Station, Canton Tower and Aeon Super Mall etc. And also help to give solutions to customer's own house project.
We uphold the development concepts of professional, innovative, sincere, and efficient, focusing on product characters of art, aesthetics, safety and durability, to concentrate on creating high-quality fashion life for you and sincerely provide you with a satisfactory service.
Whatever your security shutter requirements, our team will guide you to the best solution.
Exhibitions overseas and Customers Visits in Factory:
A number of customers would come to visit our factory every year and we would also join worldwide exhibitions to meet our clients or communicate and share with other good manufacturers about the news including trends and technologies for doors and windows, which can help us to improve our products and acknowledge more about the customer demands in market.
1. Terms of payment?
Payment ways of trade Assurance on Alibaba.com, PayPal, Western Union, T/T, L/C are acceptable.
2. How can we guarantee quality?
Strict quality control is conducted before shipment and photos or videos would be sent for goods inspection.
3. How about after-sales service?
After sales service would be always following up your order to offer you satisfied service.
4. How long for the production & delivery?
It takes about 15-25 days for custom-made order.
In generally, it needs around 30-40 days for shipping by sea to Non-Asian countries.
It takes around 25 days for shipping by train to Euro country.
5. Customization Service?
Just provide us the doors or windows opening sizes, colors and opening ways you prefer, then we will give you free design drawing to make sure that will match with your projects or not.
· Digah Company where to order kitchen cabinets is manufactured by our professional workers who draw on their many years of know-how and experience in catalysis and materials science.
· The product can work under a wide range of temperature. It has been treated under thermal compression which ensures it to adapt flexibly to temperature change.
· After using the product, the hotel found that guests' overall satisfaction has improved significantly, and that satisfaction has continued to grow over the past few years. - Said one of our customers.
· Relying on years of focus on the R&D, design, and production of aluminium window, Guangzhou House Empire Construction&Furnishing Co.,Ltd has become a powerful manufacturer in the industry.
· We have a stable presence in the USA, Australia, and some Europe markets. We have a relatively significant influence in the international market. We have successfully finished several projects throughout the world.
· While paying attention to the quality of aluminium window, Digah Company also focuses on the customer service. Inquiry!
Application of the Product
Our metal door is widely used in industry.
Digah House Company always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
